Automatic loading and unloading device

The side-mounted semi-automatic loading and unloading design reduces the center of gravity and vibration,making cutting more stable and loading and unloading more convenient.

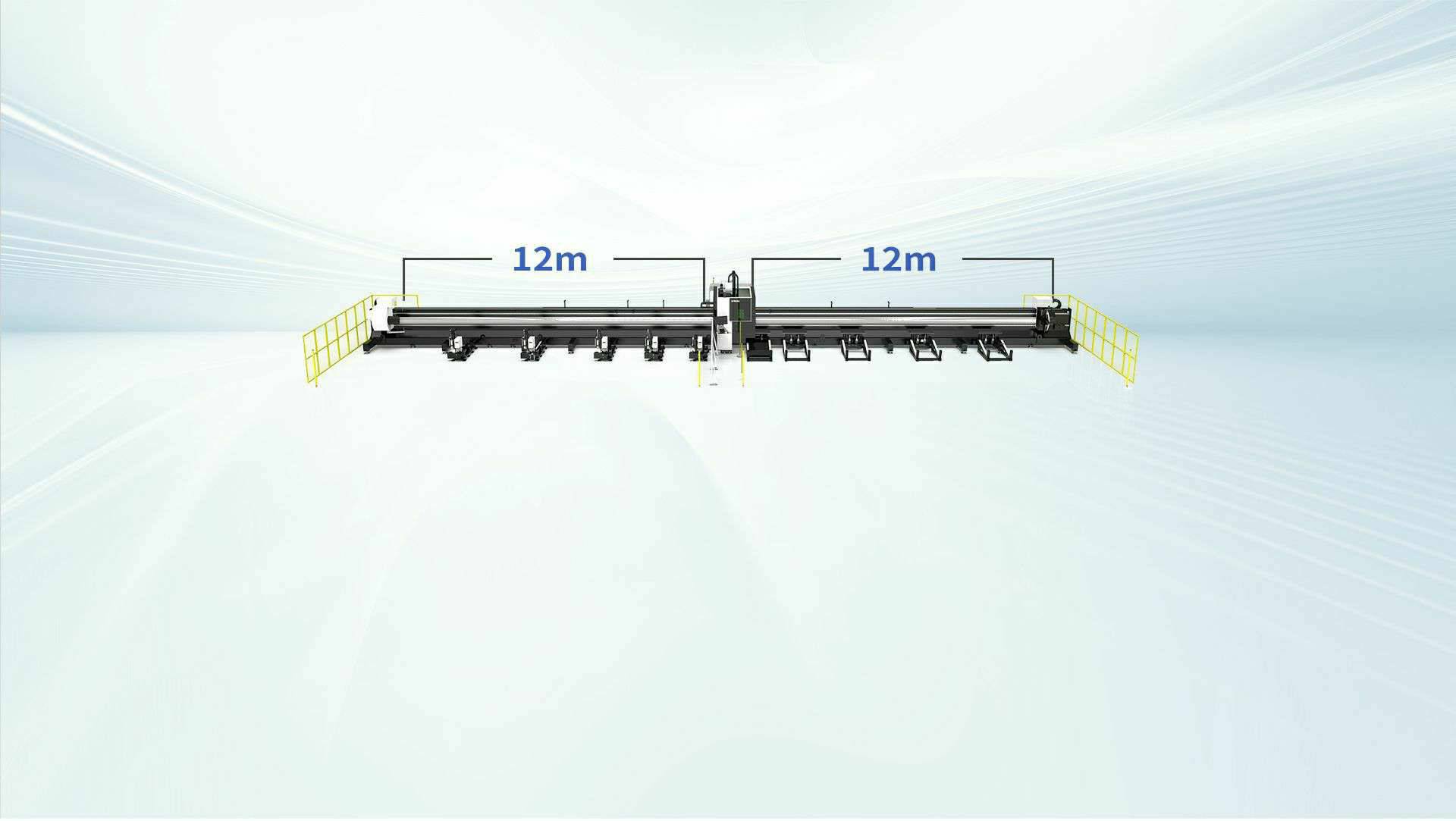

Can longest cut a whole 12m pipe

It supports the cutting of the whole pipe up to 12m,and the load capacity of a single pipe is 1200KG.Three-section bed design makes transportation more convenient.

Higher precision in processing heavy long tube workpieces

Zero tailing material design,save raw material cost of customers
Equipped with 360 square precision pneumatic 3-chucks,the maximum loading-bearing capacity of a single pipe is 1200KG,the third chuck is designed as a throught-hole chuck,which can clamp the pipe head in the shape of an inclined plane,and the fixed jaws hold the pipe more firmly.

Higher precision in processing heavy long tube workpieces

Zero tailing material design,save raw material cost of customers
Equipped with 360 square precision pneumatic 3-chucks,the maximum loading-bearing capacity of a single pipe is 1200KG,the third chuck is designed as a throught-hole chuck,which can clamp the pipe head in the shape of an inclined plane,and the fixed jaws hold the pipe more firmly.

Industry Applications

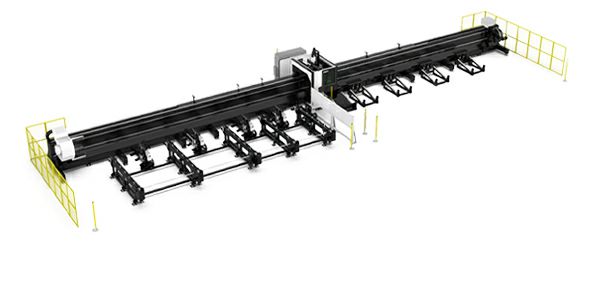

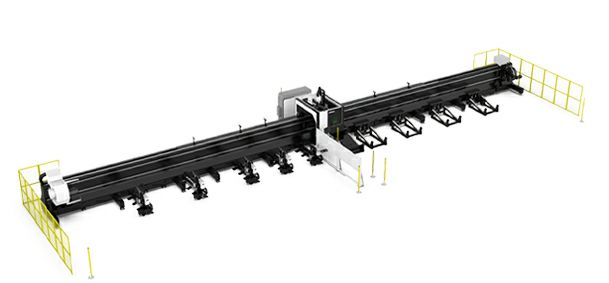

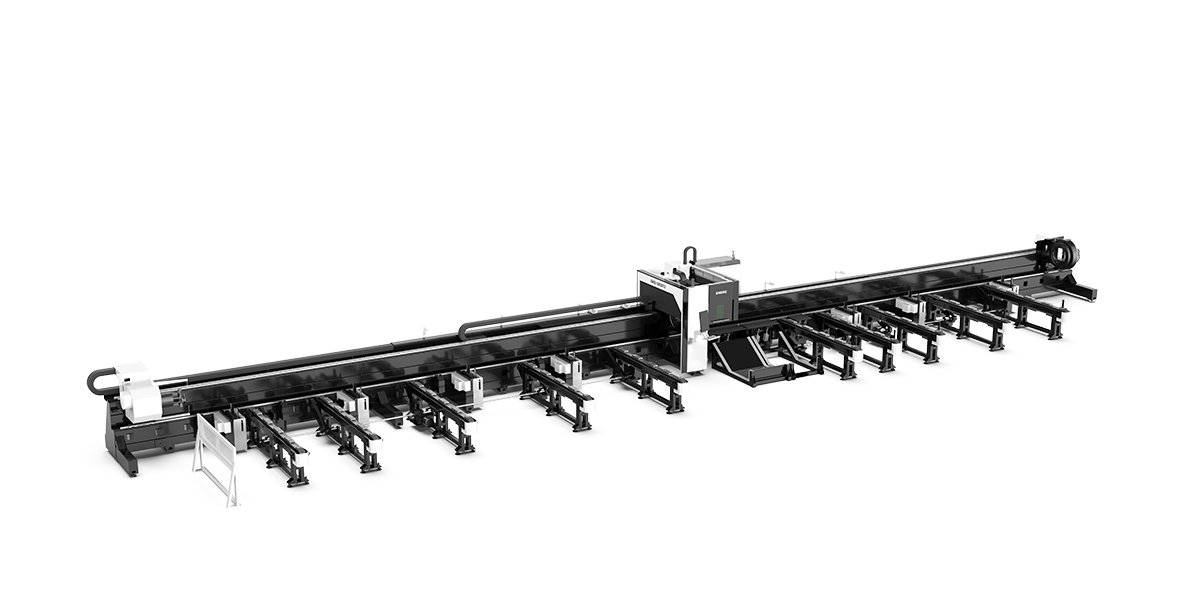

GKS6036T3 is a side-mounted three-chuck heavy-duty laser pipe cutting machine. It is equipped with 360 square precision pneumatic 3-chucks, which can realize the zero-tailing cutting process (realized under the condition of reasonable process layout) and the largest single piece The bearing capacity of the pipe is 1200KG.

Tube diameter cutting range: round tube φ30-φ360mm, square tube □30X30-□350X350mm

Technical Parameters

Machine model	GKS-6036T3	GKS-9036T3	GKS-12036T3
Laser power	3000W-12000W
Clamping range	Round pipe:Φ30-350mm
Clamping range	Square pipe:□30-350mm
Maximum rotating speed	60r/min
Effective cutting length of pipe	6500mm	9500mm	12500mm
Repeated positioning accuracy	±0.03mm
Single pipe loading-bearing	1200KG
Chuck structure	360 Pneumatic Chuck
