Laser Automatic Loading and Unloading Fiber Laser Cutting Machine
Video Show ![Video Show]()
Laser Automatic Loading and Unloading Fiber Laser Cutting Machine
Maximum processing area of 6m*2.5m,
with a load-bearing capacity of up to 3T.
Vacuum suction automatic loading,
laser cutting, toothed unloading,
stable operation,
automatic intelligence.

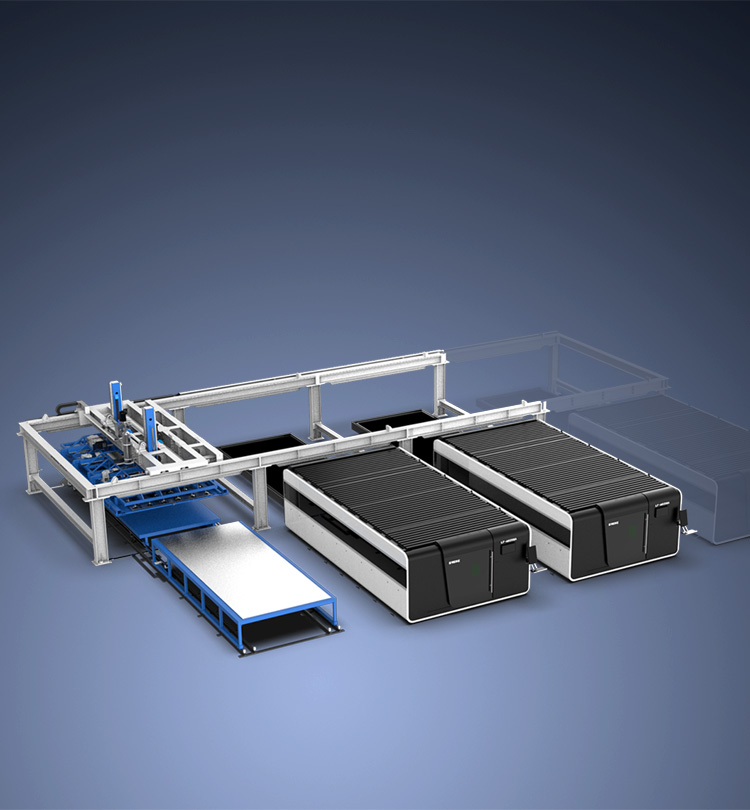

Modular gantry frame design, easy assembly, achieving one-to-two, one-to-N configurations.

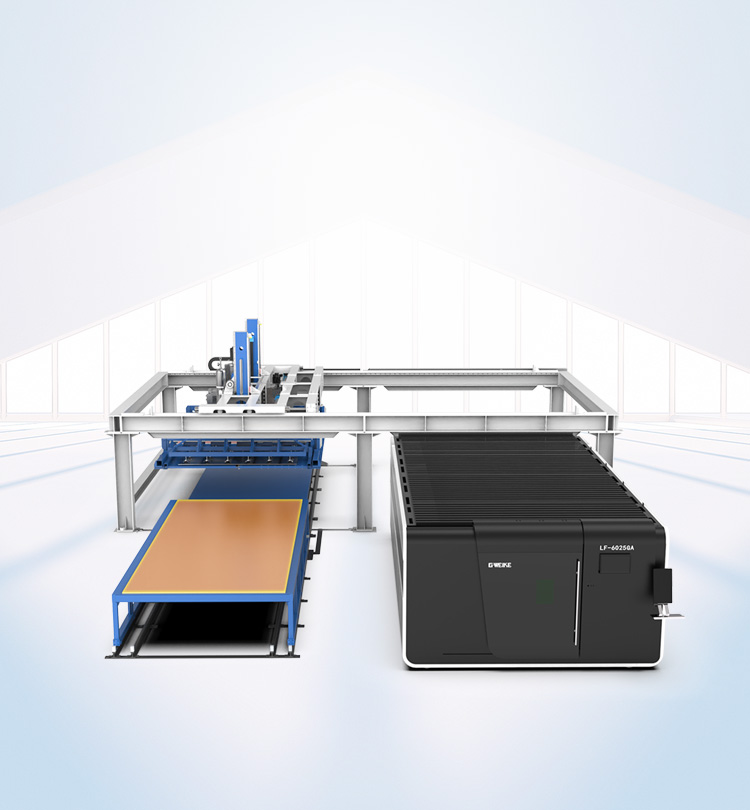

Single-board loading with intelligent detection; scratch-free loading and unloading to protect materials from damage.
Automotive manufacturing, office furniture, electrical industry, chassis cabinets, elevator manufacturing, kitchenware,
decorative curtain walls, machinery manufacturing, mold industry, rail transportation, medical equipment, office furniture
| Maximum loading plate size | 6000*2500mm |
| Minimum loading plate size | 1000*1000mm |
| Maximum loading and unloading plate thickness | 14mm |
| Minimum loading and unloading plate thickness | 2mm |
| Maximum loading and unloading plate weight | 2000kg |
| Single-layer loading weight of exchange trolley | 3T |
| Single-layer loading height of exchange trolley | 30mm |
| Manipulator translation speed | 10-25m/min |
| Manipulator lifting speed | 5-12m/min |
| Electric trolley exchange speed | 12m/min |
| Working cycle time | 280S |
| Equipment power | 23KW |
| Total system weight | 17000KG |
| Equipment air inlet pipe | 16mm |
| Equipment air source | 0.6-0.7Mpa |
| Power requirements | 380V / 30KW |
