CNC Bending Machine
Video Show ![Video Show]()
Machine body optimized through finite element design, stress-relieved through annealing treatment to ensure strong steel properties and structural stability.
Hydraulic servo system combined with international standard detection components ensures high synchronization control accuracy, guaranteeing high bending and repeat positioning precision.
Utilizes the powerful and user-friendly Netherlands DELEM DA-53T CNC system, capable of automatically calculating total material length for bending workpieces and enabling 2D touch-based graphic programming.

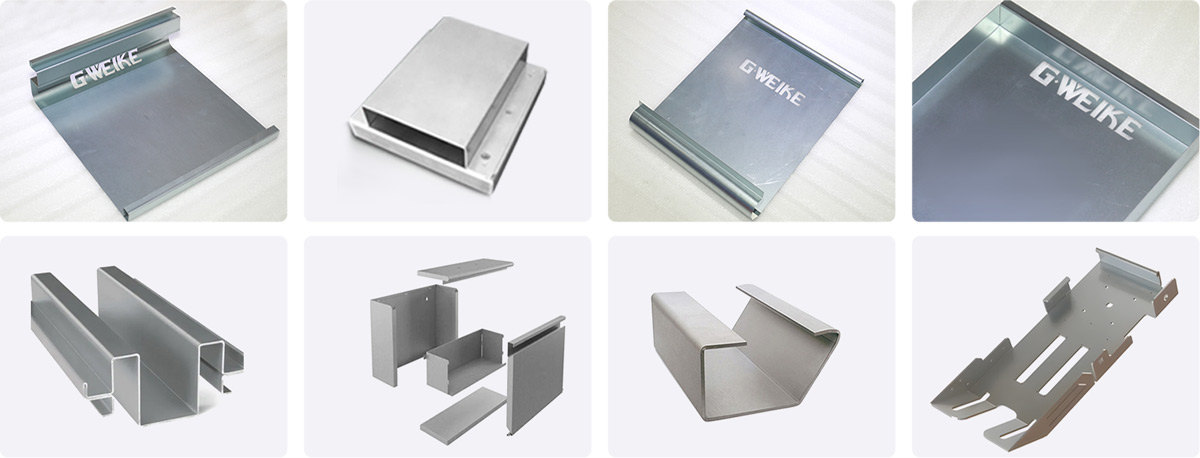

Filing cabinets, electrical cabinets, kitchenware, curtain walls, door and elevator industry, household appliances, wind communication, shipbuilding.
| Machine model | 10032 | 10032 | 17032 | 20032 |
|---|---|---|---|---|
| NominaI pressure | 1000 | 1300 | 1700 | 2000 |
| Working length | 3200 | 3200 | 3200 | 3200 |
| Column spacing | 2600 | 2600 | 2600 | 2600 |
| Maximum opening height | 480 | 480 | 480 | 480 |
| Slider stroke | 200 | 200 | 200 | 200 |
| Throat depth | 400 | 400 | 400 | 400 |
| Bending Rapid down | 180 | 180 | 180 | 150 |
| Work | 10 | 10 | 10 | 9 |
| Return trip | 160 | 160 | 160 | 130 |
| Main motor power | 7.5 | 11 | 15 | 18.5 |
| X axis travel X | 500 | 500 | 500 | 500 |
| X axis speed X | 300 | 300 | 300 | 300 |
| R axis travel R | 200 | 200 | 200 | 200 |
| R axis speed R | 60 | 60 | 60 | 60 |
