GKS-BC0520P
Push-down Bending Center
Video Show ![Video Show]()
Push-down Bending Center
Can achieve speeds of up to 0.2 seconds per bend, a 260% improvement over traditional bending machines. Automatic feeding and bending reduce human intervention, lowering labor intensity and saving 3-4 laborers.

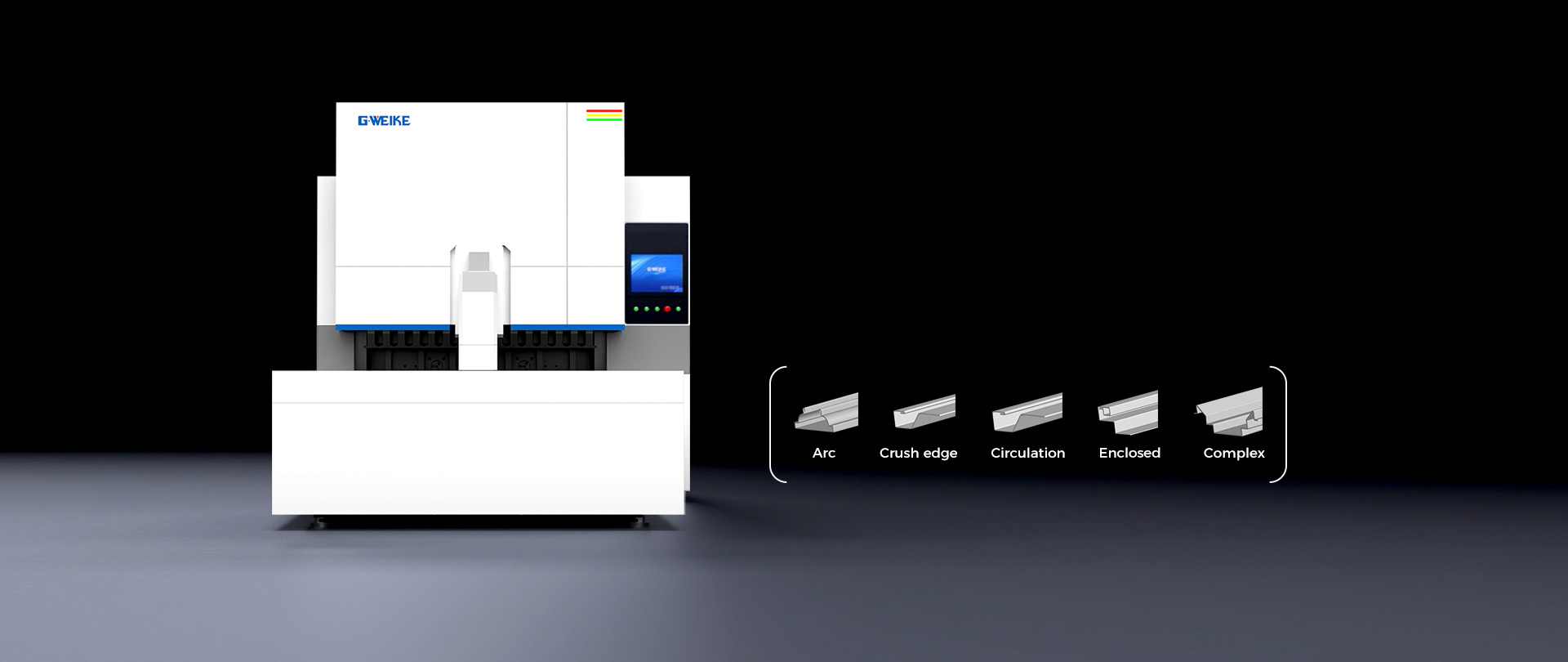

With larger processing areas and wider load-bearing ranges, it can meet the bending needs of different workpieces, including arcing, hemming, return bends, and closed shapes.
Automatic feeding and bending processes reduce human intervention, lower labor intensity, enable batch production and automation, saving 3-4 laborers and reducing costs by over 65%.
Fixed universal bending tools eliminate the need to change upper and lower bending tools. No vulnerable parts result in low maintenance costs.

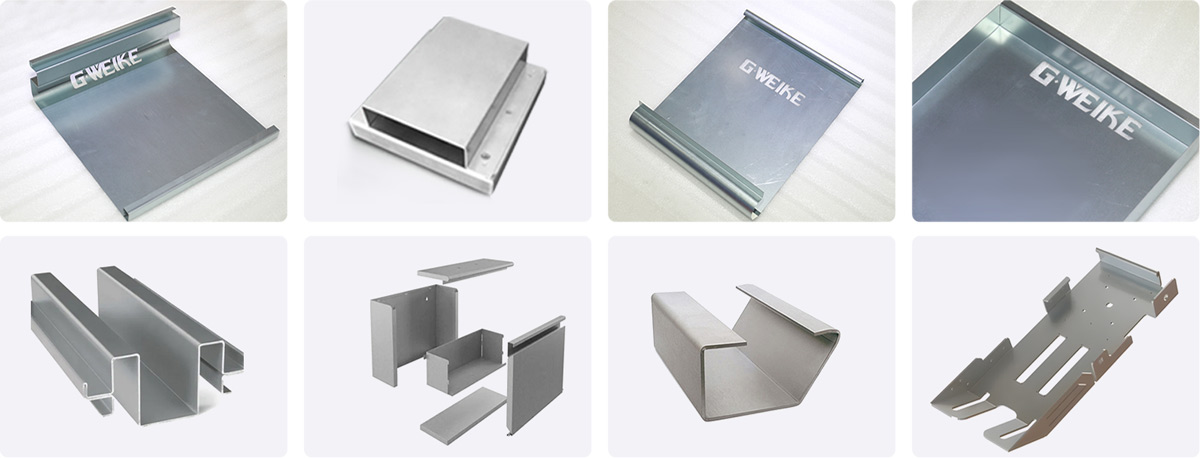

Filing cabinets, electrical cabinets, kitchenware, curtain walls, door and elevator industry, household appliances, and furniture.
| Machine model | GKS-BC0520P |
|---|---|
| Feeding structure | Press Arm |
| Number of axes | Standard 13 axis |
| Maximum bending length | 2100mm |
| Maximum bending height | 200mm |
| Minimum Bend Single Side Dimensions | 140mm |
| Bilateral Minimum Forming Dimensions | 140mm |
| Minimum forming size of four sides | 140mm*190mm |
| Maximum sheet length | 2100mm |
| Maximum sheet width | 1500mm |
| Minimum arc radius | 6mm |
| Minimum continuous bending speed | 0.2S |
| Maximum feeding speed | 120m/min |
| Bending angle | 0-180° |
| Bending capacity | Carbon steel plate:2mm/Stainless steel plate:1.5mm/Aluminum plate:3mm |
| The rated voltage | 380V AC |
| Peak power | About 43KW |
| Average power | About 5KW |
| Total machine weight | About 13.7 T |
| Dimensions | 5470mm*3200mm*2790mm |
