GKS-BC0315
Suction-Type CNC Panel Bending Machine
0.2s per bend | 10-axis control | Automatic feeding | 1500 mm bending length
Video Show ![Video Show]()
0.2s per bend | 10-axis control | Automatic feeding | 1500 mm bending length
Up to 0.2 seconds per bend can be reached, with a 260% improvement over traditional bending machines. Bends over 5000 blades daily, equivalent to the output of 6 traditional bending machines.

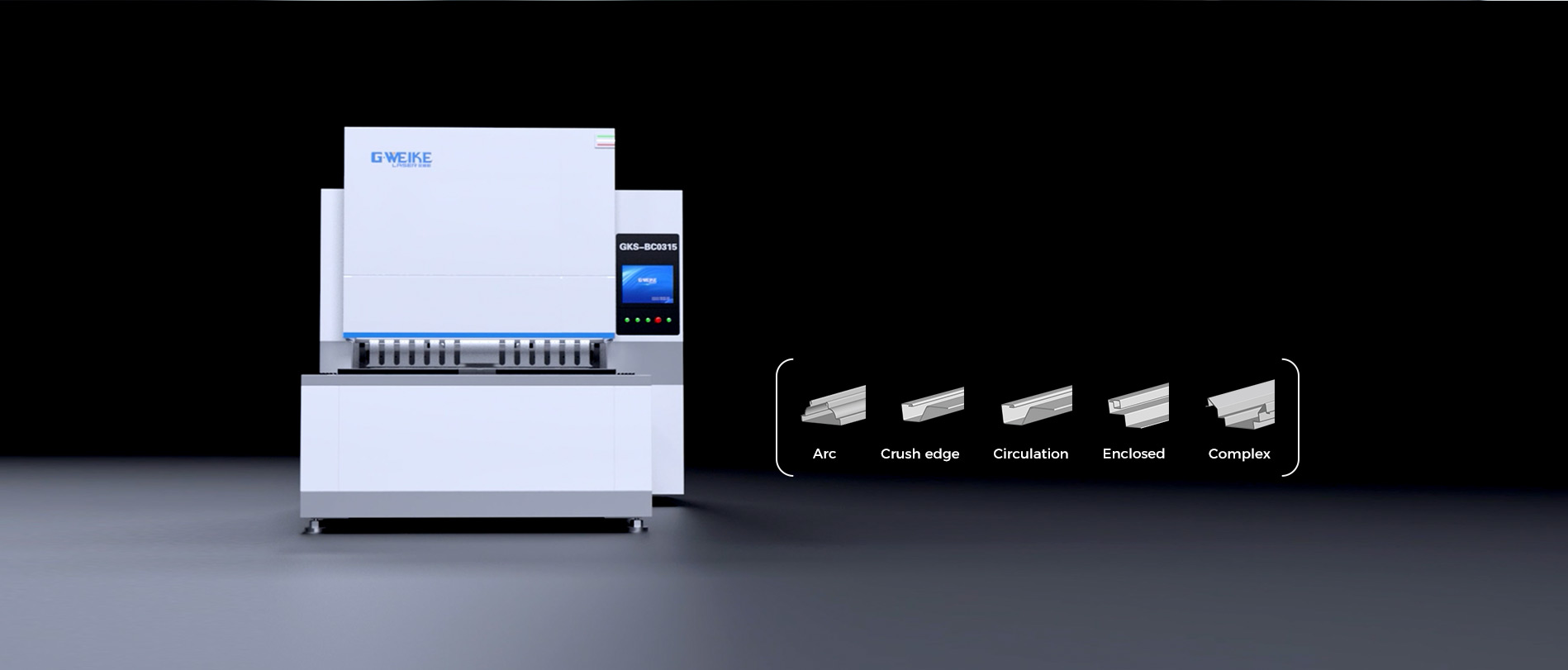

Handle arcs, hemming, return bends, closed shapes, and other complex sheet metal forms with higher consistency and less manual adjustment.
Automatic feeding and bending processes reduce human intervention, lower labor intensity, enable batch production and automation, saving 3-4 laborers and reducing costs by over 65%.
Fixed universal bending tools reduce setup time and eliminate frequent upper and lower tool changes. The machine is easy to operate, has fewer wear parts, and helps lower long-term maintenance costs.
Ideal for cabinet manufacturing, appliance panels, furniture components, architectural sheet metal, and other batch-produced formed parts.
Filing cabinets, electrical cabinets, kitchenware, curtain walls, door and elevator industry, household appliances, and furniture.
| Machine model | GKS-BC0315 |
|---|---|
| Feeding structure | Suction-cup type |
| Number of axes | Standard 10 axis |
| Maximum bending length | 1500mm |
| Maximum bending height | 170mm |
| Minimum Bend Single Side Dimensions | 230mm |
| Bilateral Minimum Forming Dimensions | 340mm |
| Minimum forming size of four sides | 410mm*340mm |
| Maximum sheet length | 1500mm |
| Maximum sheet width | 1250mm |
| Minimum arc radius | 6mm |
| Minimum continuous bending speed | 0.2S |
| Maximum feeding speed | 120m/min |
| Bending angle | 0-180° |
| Bending capacity | Carbon steel plate:1.5mm/Stainless steel plate:1mm/Aluminum plate:2mm |
| The rated voltage | 380V AC |
| Peak power | About 40KW |
| Average power | About 2KW |
| Total machine weight | About 10.6 T |
| Dimensions | 3780mm*2510mm*2790mm |
