The Third Generation Aviation Aluminum Gantry

Evolutionary history of gantry crossGantry

3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

Safety and No Pollution

With a fully enclosed design.

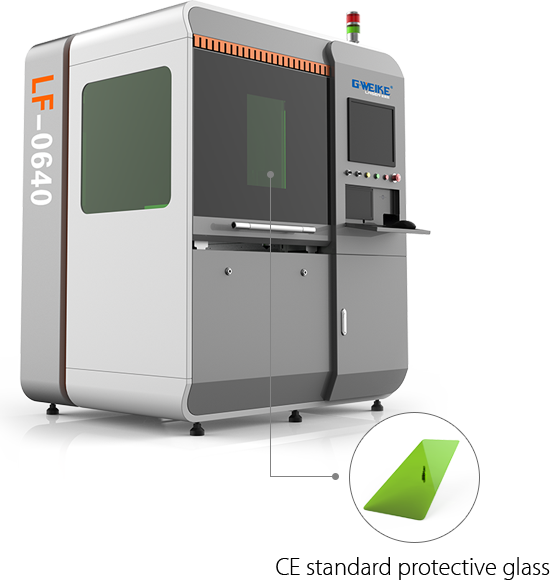

The observation window adopts an European CE standard laser protective glass.
The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly.

Dual Rail and Dual Driver Design

To prevent the cutting line deformation caused by the Y-axis screw bending, the Y-axis on both sides have been equipped two rails guide and double ball drive screw design to ensure the straightness and arc degree when with high-speed cutting is in operation.

Without manual operation, it can focus automatically

Without manual focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Bigger adjustment range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long service life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Transmission and Precision

G.WEIKE fiber laser cutting machine is equipped with Japanese Panasonic servo motor, imported TBI dual driver grinding ball screw for Y axis, imported TBI grinding ball screw for X axis and Hiwin guide rail, the positioning accuracy of the machine tool can be 0.008mm and the cutting acceleration is 0.5G. The working life is more than 10 years.

Technical Parameters

Machine model	LF0640
Laser power	500W 750W 1000W(Optional)
Working area	600mmx400mm
Repeat positioning accuracy	±0.008mm
Maximum speed	40m/min
Maximum acceleration	0.5G
Transmission mode	Grinding precision screw drive
Specified voltage and frequency	220V/50Hz/60Hz/60A

PDF

Technical Parameters

Click the download button, you can get all machine parameters.

Industry Applications

LF0640 is specially designed for high precision cutting. It is widely used in machinery, microelectronics, glasses, electronics and other industries, which has high requirements on the cutting accuracy.
Professional for cutting various of thin metal sheet, stainless steel plate, galvanized sheet, electrolytic plate and other metal materials.
